EQUIPMENT
Your high voltage underground transmission cable project will benefit from EHV Power’s state-of-the-art equipment resources. Our well-maintained fleet of specialty high voltage equipment runs the gamut from cable pullers to oil degasification systems, which allows us to be self-sufficient for any project or maintenance activities we undertake. Selected equipment is also available for rental (with Operator).
UNDERGROUND CABLE PULLER
(40,000 LB CAPACITY)
Timberland Model UP400-SK with 40,000 lb pulling capacity, hydraulic drive with over-pull protection, constant pulling force and speed capability. Includes 6,000 ft of 1-inch diameter steel rope. 40 ft trailer mounted.
UNDERGROUND CABLE PULLER
(20,000 LB CAPACITY)
Timberland Model UP200-SK with 20,000 lb pulling capacity, hydraulic drive with overpull protection, constant pulling force and speed capability. Includes 3,000 ft of 5/8-inch diameter steel rope. Trailer mounted.
HYDRAULICALLY DRIVEN PORTABLE
PAY-OFF / TAKE-UP
30-ton reel capacity, 148-inch maximum reel diameter, 30 ft/min powered line speed.
SELF LOADING REEL TRAILER WITH HYDRAULIC
PAY-OFF / TAKE-UP
100K pounds reel capacity, reel diameter of 84-158 inches, reel width of 77-96 inches, 30 ft/min line speed, maximum pull force of 24,000 lbs.
HIGH VOLTAGE TESTING EQUIPMENT
Testing equipment includes a Megger, a Hipot DC tester and a cable pulling running tensionometer.
PORTABLE DIELECTRIC FLUID
DEGASIFICATION PLANT
100 gallon tank capacity, dual pumping ladders with 9 kW heater, 30 CFM vacuum pump, Genevac gauge and ISO pressure pump.
SPLICING TRAILERS
Includes manhole ingress / egress equipment, manhole safety equipment,
5 kW or 11 kW generator, ventilation unit, air conditioning. For high pressure pipe type (HPPT), low pressure oil filled (LPOF) and cross linked polyethylene (XLPE) cable activities.
SPECIALIZED TOOLING AND
VACUUM TREATING EQUIPMENT
Cable splicing tools, tools for installing stress cones on XLPE cable and vacuum treating equipment.
HP6500 “BOSS HOG” CABLE PULLER
Self-maneuverable hydraulically powered Hogg & Davis pulling unit. The HP6500 pulls up to 40,000 lb.
DISTRIBUTED TEMPERATURE SENSING (DTS) UNIT
NKT Photonics (LIOS Technologies) 6km 2 Channel 1550 nm wavelength OTS3 DTS Controller.

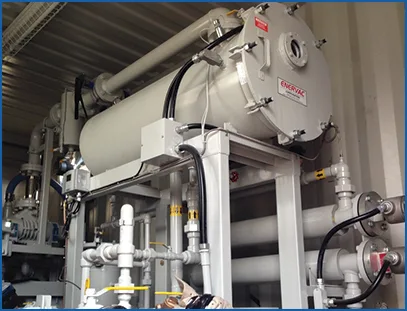

HEAVY DUTY CABLE OIL DEGASIFIER
600 GPH size high voltage cable oil degasifier.
